Counting · High-throughput photon counting

PhotonPix

Photon counting at the rates modern sources demand, in a package that drops into an existing setup.

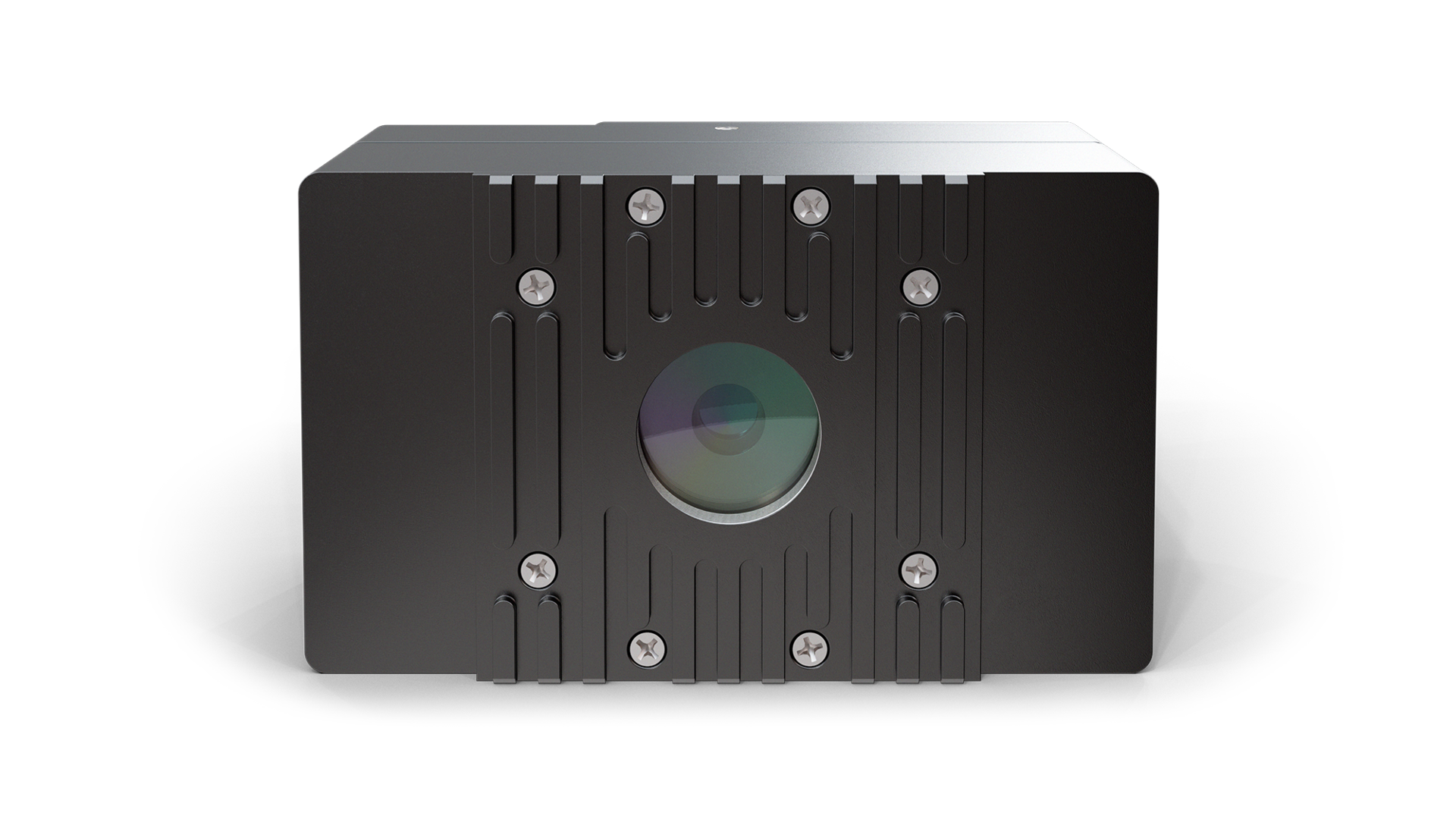

PhotonPix counting module
100MHz
Count rate
< 50ps
Timing jitter

Counting, not imaging

PhotonPix counts photons at rates up to 100 MHz and beyond, and is designed to drop into an existing setup rather than replace it.

Specification · PhotonPix
Count rate
100 MHz and beyond
Timing jitter
< 50 ps
Channels
TODO — from the datasheet
Output signals
TODO — see the user manual
Host interface
TODO — from the datasheet
Dimensions
TODO — from the datasheet
How to get started

Installation and first measurement

The PhotonPix User Manual covers this in full; the short version is four steps.

1 Mount the module and connect the detector input.
2 Install PhotonPix Control on the host.
3 Configure the overload protection thresholds.
4 Start a measurement.
Applications

Techniques PhotonPix was built for

Counting experiments where the source is bright enough that a conventional counter saturates.

Measurement induced entanglement of stored ions

Stored ions are typical examples for single photon sources that show an antibunched emission statistics. However if two stored ions are brought in an entangled state by simply measuring, interesting phenomena occur.

Software & downloads

Everything PhotonPix needs

PhotonPix Control configures the module and reads it out. The user manual is rendered from its Word master.

PhotonPix Control Get →PhotonPix User Manual Get →

Interested in PhotonPix?

Tell us about your setup and what you need to measure.
